Home > Products > Capacitors > Aluminum - Polymer Capacitors > PCX1E820MCS1GS

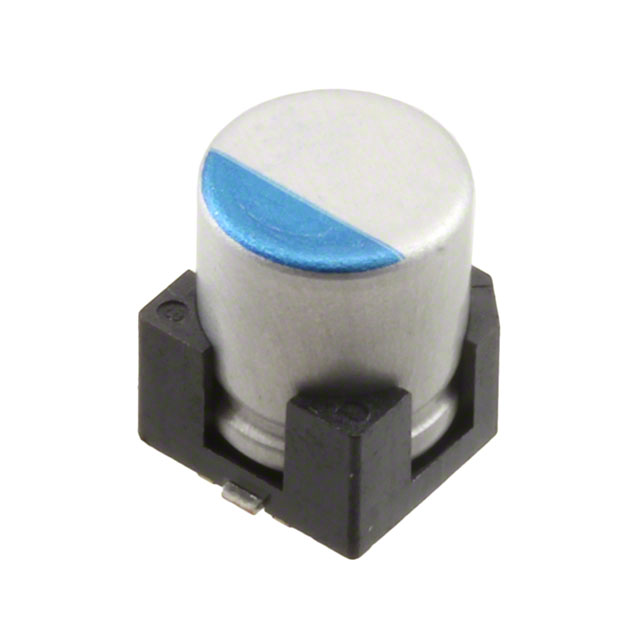

PCX1E820MCS1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCX1E820MCS1GS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PCX1E820MCS1GS
Manufacturer	Nichicon
Description	CAP ALUM POLY 82UF 20% 25V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 50062 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$1.074	$0.867	$0.663

Product parameter
Data sheet

Product parameter

Part Number	PCX1E820MCS1GS	Manufacturer	Nichicon
Description	CAP ALUM POLY 82UF 20% 25V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50062 pcs	Data sheet	Chip Type Tape Spec Polymer Aluminum Land, Reflow PCX Series
Category	Capacitors	Voltage - Rated	25V
Type	Polymer	Tolerance	±20%
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)	Size / Dimension	0.315" Dia (8.00mm)
Series	PCX	Ripple Current @ High Frequency	1.9A @ 100kHz
Ratings	-	Packaging	Original-Reel®
Package / Case	Radial, Can - SMD	Other Names	493-13699-6
Operating Temperature	-55°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lifetime @ Temp.	3000 Hrs @ 125°C	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.433" (11.00mm)
ESR (Equivalent Series Resistance)	30 mOhm	Detailed Description	82µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 30 mOhm 3000 Hrs @ 125°C
Capacitance	82µF	Applications	General Purpose
