IP3253CZ12-6-TTL,1

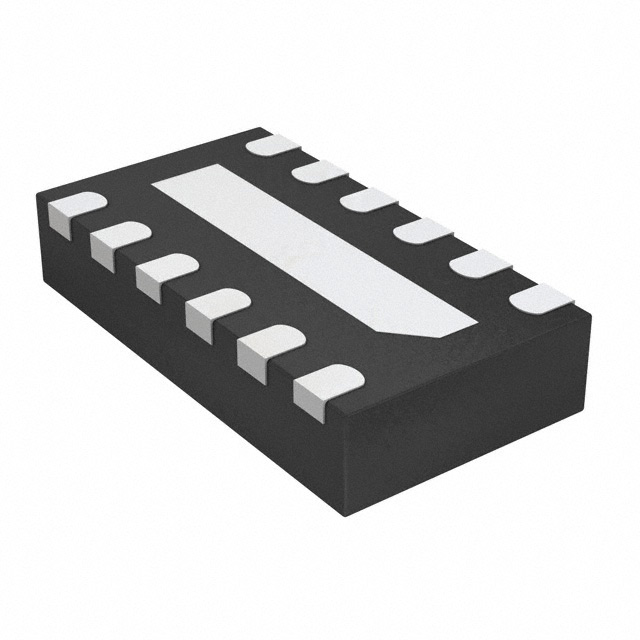

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IP3253CZ12-6-TTL,1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IP3253CZ12-6-TTL,1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IP3253CZ12-6-TTL,1 |
|---|---|
| Manufacturer | Nexperia |
| Description | FILTER LC(PI) 18NH/25PF ESD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IP3253CZ12-6-TTL,1 | Manufacturer | Nexperia |
|---|---|---|---|
| Description | FILTER LC(PI) 18NH/25PF ESD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6008 pcs | Data sheet | IP3253,54-TTL |
| Category | Filters | Voltage - Rated | - |
| Values | L = 18nH (Total), C = 25pF (Total) | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.098" L x 0.053" W (2.50mm x 1.35mm) |
| Series | - | Resistance - Channel (Ohms) | 8 |
| Packaging | Original-Reel® | Package / Case | 12-UFDFN Exposed Pad |
| Other Names | 1727-5667-6 568-7162-6 568-7162-6-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.022" (0.55mm) | Filter Order | 3rd |
| ESD Protection | Yes | Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 6 Channel L = 18nH (Total), C = 25pF (Total) 30mA 12-UFDFN Exposed Pad |
| Current | 30mA | Center / Cutoff Frequency | 175MHz (Cutoff) |
| Attenuation Value | 30dB @ 1GHz ~ 4GHz | Applications | GSM, LAN, PCS, WAN |
