IP3338CX24/LF/P,13

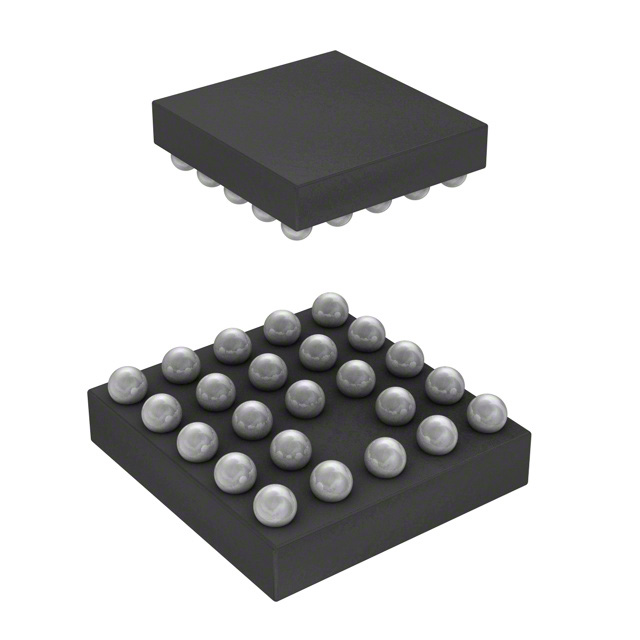

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IP3338CX24/LF/P,13 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IP3338CX24/LF/P,13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IP3338CX24/LF/P,13 |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Description | FILTER LC(PI) 60NH/25PF ESD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | IP3338CX24/LF/P,13 | Manufacturer | NXP Semiconductors / Freescale |
|---|---|---|---|
| Description | FILTER LC(PI) 60NH/25PF ESD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5718 pcs | Data sheet | |
| Category | Filters | Voltage - Rated | - |
| Values | L = 60nH (Total), C = 25pF (Total) | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.083" L x 0.083" W (2.11mm x 2.11mm) |
| Series | - | Resistance - Channel (Ohms) | 125 |
| Packaging | Tape & Reel (TR) | Package / Case | 24-WFBGA, WLCSP |
| Other Names | 568-7166-2 934062728135 IP3338CX24/LF/P,13-ND IP3338CX24LFP13 |
Operating Temperature | -35°C ~ 85°C |
| Number of Channels | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.026" (0.65mm) | Filter Order | 3rd |
| ESD Protection | Yes | Detailed Description | LC (Pi) EMI Filter 3rd Order Low Pass 10 Channel L = 60nH (Total), C = 25pF (Total) 10mA 24-WFBGA, WLCSP |
| Current | 10mA | Center / Cutoff Frequency | 180MHz (Cutoff) |
| Attenuation Value | 40dB @ 800MHz ~ 3GHz | Applications | GSM, LAN, PCS, WAN |
