Home > Products > Optoelectronics > Display Modules - LCD, OLED Character and Numeric > NHD-0240BZ-NSW-BTW-P

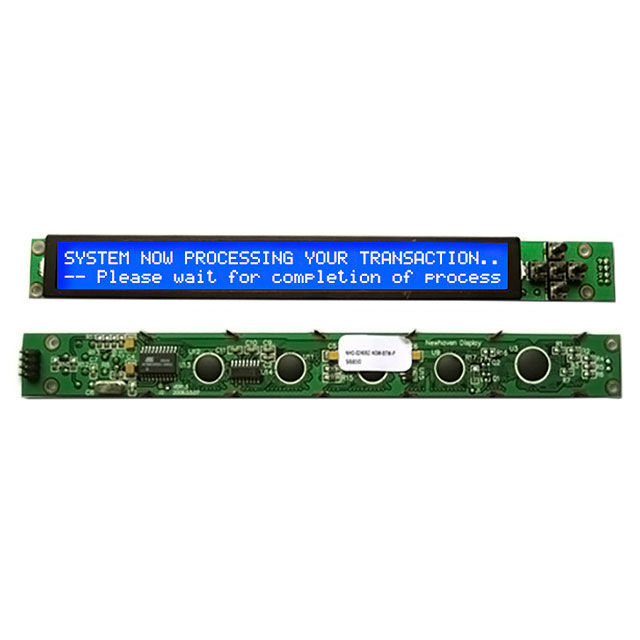

NHD-0240BZ-NSW-BTW-P

NHD-0240BZ-NSW-BTW-P

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-0240BZ-NSW-BTW-P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NHD-0240BZ-NSW-BTW-P
Manufacturer	Newhaven Display, Intl.
Description	LCD MOD SER CHAR 2X40 WH TRANSM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4762 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$7.224

Product parameter
Data sheet

Product parameter

Part Number	NHD-0240BZ-NSW-BTW-P	Manufacturer	Newhaven Display, Intl.
Description	LCD MOD SER CHAR 2X40 WH TRANSM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4762 pcs	Data sheet	NHD-0240BZ-NSW-BTW-P
Category	Optoelectronics	Voltage - Supply	12V
Viewing Area	153.50mm L x 16.00mm W	Text Color	White
Series	-	Outline L x W x H	163.00mm x 22.00mm x 13.40mm
Operating Temperature	-20°C ~ 70°C	Number of Characters	80
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	RS-232
Dot Size	0.60mm W x 0.65mm H	Display Type	STN - Super-Twisted Nematic
Display Mode	Transmissive	Display Format	40 x 2
Detailed Description	Character LCD Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White RS-232 163.00mm x 22.00mm x 13.40mm	Character Size	5.55mm H x 3.20mm W
Character Format	5 x 8 Dots	Backlight	LED - White
Background Color	Blue
