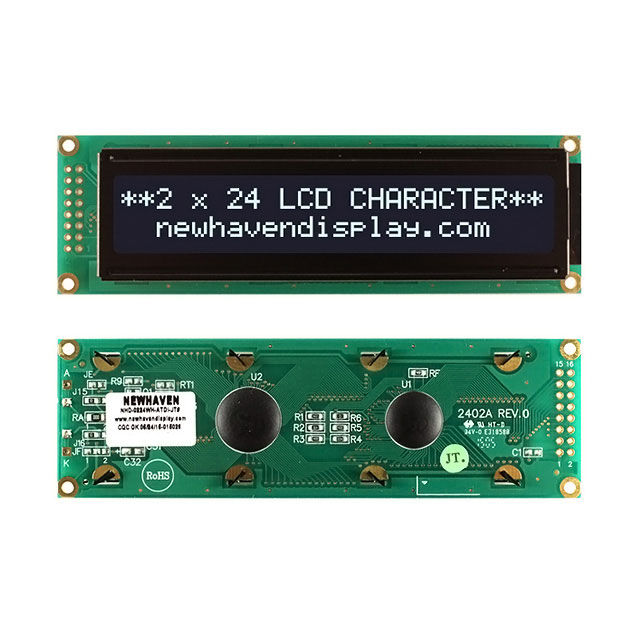

NHD-0224WH-ATDI-JT#
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NHD-0224WH-ATDI-JT# with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NHD-0224WH-ATDI-JT# with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NHD-0224WH-ATDI-JT# |
|---|---|
| Manufacturer | Newhaven Display, Intl. |
| Description | LCD MOD CHAR 24X2 TRANSMISSIVE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.539 | $5.207 | $4.874 | $4.597 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.376 | $4.154 | $3.988 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NHD-0224WH-ATDI-JT# | Manufacturer | Newhaven Display, Intl. |
|---|---|---|---|
| Description | LCD MOD CHAR 24X2 TRANSMISSIVE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9650 pcs | Data sheet | NHD-0224WH-ATDI-JT# |
| Category | Optoelectronics | Voltage - Supply | 4.5 V ~ 5.5 V |
| Viewing Area | 94.50mm L x 16.00mm W | Text Color | White |
| Series | - | Outline L x W x H | 118.00mm x 36.00mm x 13.60mm |
| Other Names | NHD0224WHATDIJT | Operating Temperature | -20°C ~ 70°C |
| Number of Characters | 48 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Parallel | Dot Size | 0.60mm W x 0.65mm H |
| Display Type | FFSTN - Double Film Super-Twisted Nematic | Display Mode | Transmissive |
| Display Format | 24 x 2 | Detailed Description | Character LCD Display Module Transmissive 5 x 8 Dots FFSTN - Double Film Super-Twisted Nematic LED - White Parallel 118.00mm x 36.00mm x 13.60mm |
| Character Size | 5.55mm H x 3.20mm W | Character Format | 5 x 8 Dots |
| Backlight | LED - White | Background Color | Black |
