JN5139-Z01-M/04R1T

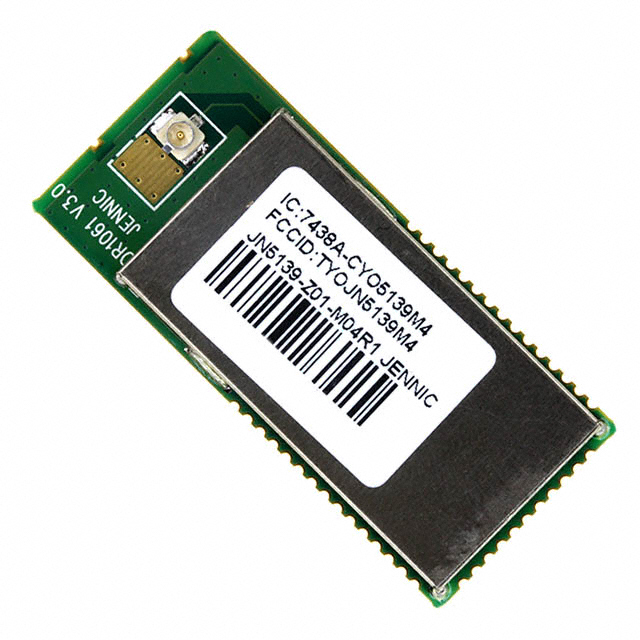

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN5139-Z01-M/04R1T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN5139-Z01-M/04R1T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN5139-Z01-M/04R1T |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Description | RF TXRX MODULE 802.15.4 U.FL ANT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN5139-Z01-M/04R1T | Manufacturer | NXP Semiconductors / Freescale |
|---|---|---|---|
| Description | RF TXRX MODULE 802.15.4 U.FL ANT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4497 pcs | Data sheet | JN5139-yyy-Myy DatasheetJN5139-yyy-Myy Product Brief |
| Category | RF/IF and RFID | Voltage - Supply | 2.2 V ~ 3.6 V |
| Utilized IC / Part | - | Series | JN5139-Z01-M0x |
| Serial Interfaces | I²C, SPI, UART | Sensitivity | -100dBm |
| RF Family/Standard | 802.15.4 | Protocol | Zigbee® |
| Power - Output | 19dBm | Packaging | Tape & Reel (TR) |
| Package / Case | Module | Other Names | 616-1040-2 935294022534 JN5139-Z01-M04 JN5139-Z01-M04-ND JN5139-Z01-M04R1T JN5139-Z01-M04R1X JN5139-Z01-M04R1X-ND JN5139Z01M04R1T Q3428878 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Modulation | - |
| Memory Size | 192kB ROM, 96kB RAM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency | 2.4GHz | Data Rate | - |
| Current - Transmitting | 125mA | Current - Receiving | 45mA |
| Antenna Type | Not Included, U.FL |
