Home > Products > RF/IF and RFID > RF Transceiver ICs > JN5139/Z01,515

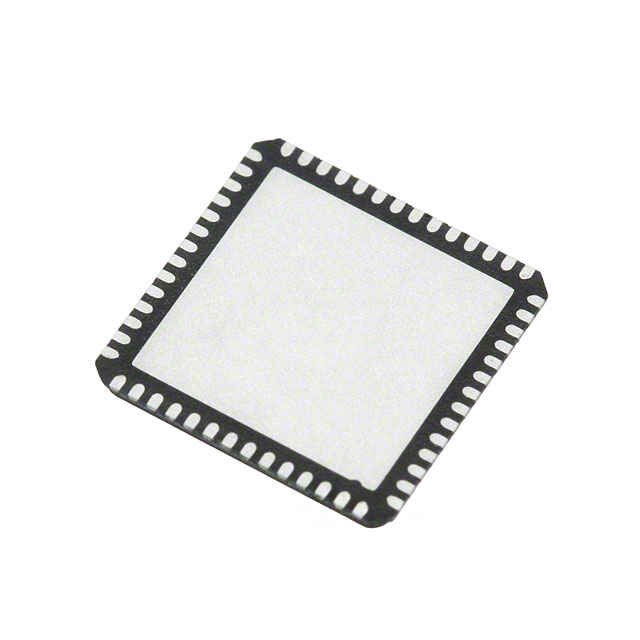

JN5139/Z01,515

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN5139/Z01,515 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JN5139/Z01,515
Manufacturer	NXP Semiconductors / Freescale
Description	IC RF TXRX+MCU 802.15.4 56-VFQFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5195 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	JN5139/Z01,515	Manufacturer	NXP Semiconductors / Freescale
Description	IC RF TXRX+MCU 802.15.4 56-VFQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5195 pcs	Data sheet	JN5139-001, Z01 Datasheet
Category	RF/IF and RFID	Voltage - Supply	2.2 V ~ 3.6 V
Type	TxRx + MCU	Series	-
Serial Interfaces	SPI, UART	Sensitivity	-97dBm
RF Family/Standard	802.15.4	Protocol	Zigbee®
Power - Output	3dBm	Packaging	Cut Tape (CT)
Package / Case	56-VFQFN	Other Names	616-1034-1
Operating Temperature	-40°C ~ 85°C	Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Modulation	-	Memory Size	192kB ROM, 96kB RAM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	GPIO	21
Frequency	2.4GHz	Detailed Description	IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 56-VFQFN
Data Rate (Max)	1Mbps	Current - Transmitting	38mA
Current - Receiving	37mA
