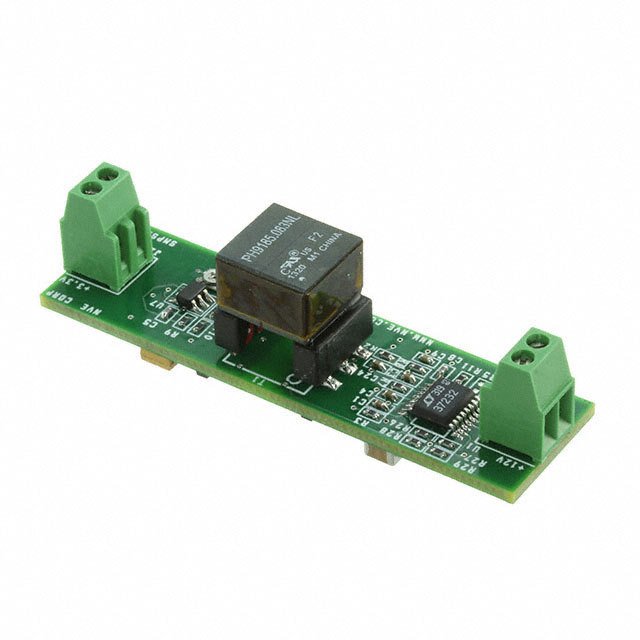

SMPS2-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMPS2-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMPS2-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMPS2-01 |
|---|---|
| Manufacturer | NVE Corporation |
| Description | DEMO BOARD MSOP ISOLATED SMPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4 pcs | ||||
|---|---|---|---|---|---|
| $68.541 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMPS2-01 | Manufacturer | NVE Corporation |
|---|---|---|---|
| Description | DEMO BOARD MSOP ISOLATED SMPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 533 pcs | Data sheet | SMPS2-01 |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 3.3V |
| Voltage - Input | 11 V ~ 14 V | Utilized IC / Part | IL710, IL711 |
| Supplied Contents | Board(s) | Series | IsoLoop® |
| Regulator Topology | Buck | Outputs and Type | 1, Isolated |
| Other Names | 390-1173 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Main Purpose | DC/DC, Step Down |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | 130kHz |
| Detailed Description | IL710, IL711 IsoLoop® DC/DC, Step Down 1, Isolated Outputs Evaluation Board | Current - Output | 750mA |
| Board Type | Fully Populated |
