Home > Products > Switches > Toggle Switches > WT23S

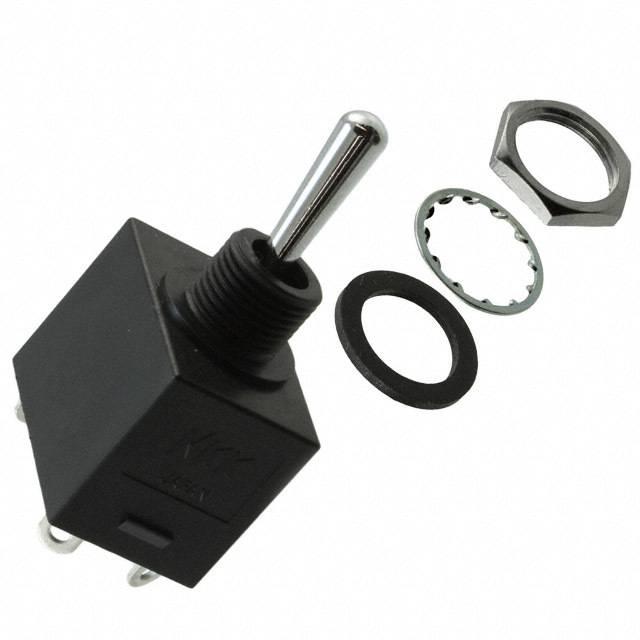

WT23S

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT23S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	WT23S
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7195 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$6.465	$6.115	$5.941	$5.766
	$5.591	$5.416	$4.543

Product parameter
Data sheet

Product parameter

Part Number	WT23S	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7195 pcs	Data sheet	WT Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	WT
Panel Cutout Dimensions	Circular - 12.50mm Dia	Packaging	Bulk
Other Names	360-1257 360-1257-ND 360-1961 WT23S-RO	Operating Temperature	-30°C ~ 70°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	15,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	10A (AC/DC)
Circuit	DPDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	17.50mm
