Home > Products > Switches > Pushbutton Switches > UB26SKW036G-JB

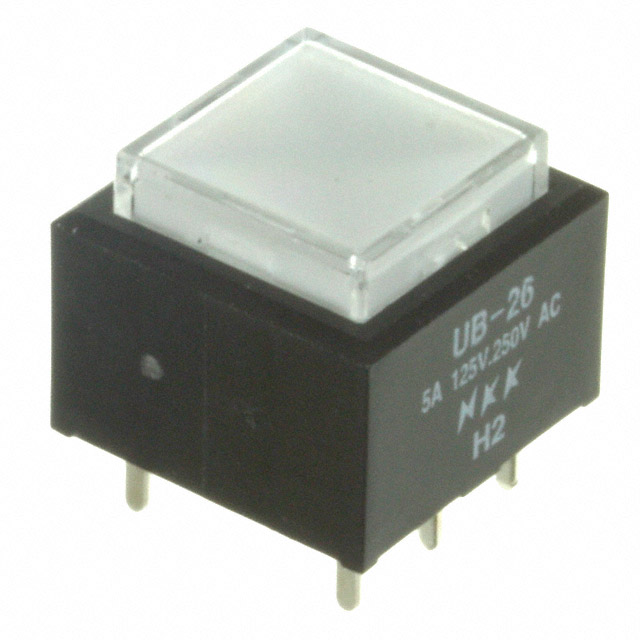

UB26SKW036G-JB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB26SKW036G-JB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB26SKW036G-JB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 5605 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$7.145	$7.047	$6.948	$6.451
	$6.352	$5.657	$5.459

Product parameter
Data sheet

Product parameter

Part Number	UB26SKW036G-JB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5605 pcs	Data sheet	UB Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	PC Pin	Switch Function	On-On
Series	UB	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	UB26SKW036GJB
Operating Temperature	-25°C ~ 50°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.9 VDC
Illumination Type, Color	LED, Blue	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Through Hole
Current Rating	5A (AC/DC)	Color - Actuator/Cap	Clear (White Filter/Diffuser)
Circuit	DPDT	Actuator Type	Square, Button
