Home > Products > Switches > Pushbutton Switches > UB225SKG036CF-4J02

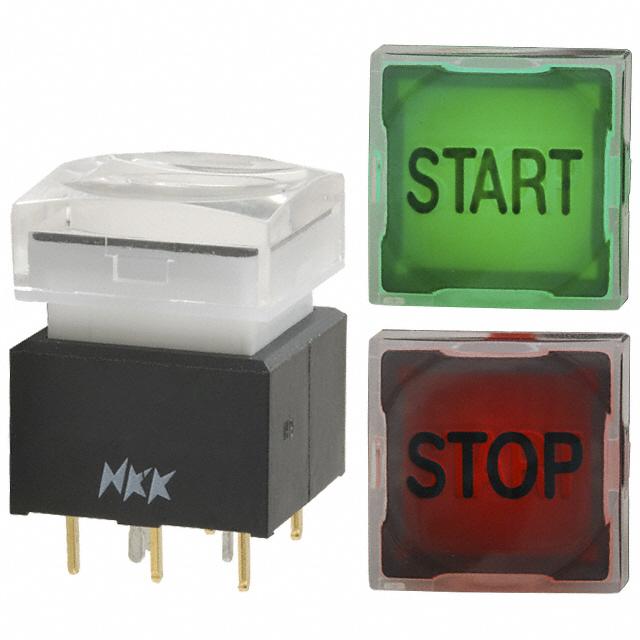

UB225SKG036CF-4J02

UB225SKG036CF-4J02

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB225SKG036CF-4J02 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB225SKG036CF-4J02
Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4633 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	UB225SKG036CF-4J02	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4633 pcs	Data sheet	UB2 Low Profile Pushbutton
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard, Illuminated
Termination Style	PC Pin	Switch Function	On-Mom
Series	UB2	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-2237 UB225SKG036CF4J02
Operating Temperature	-25°C ~ 50°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.1, 3.5 VDC	Illumination Type, Color	LED, Red/Green
Features	START/STOP Symbol	Electrical Life	200,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Clear	Circuit	DPDT
Actuator Type	Square, Button, Alternating Legend
