Home > Products > Switches > Pushbutton Switches > UB16NBKW015C-CB

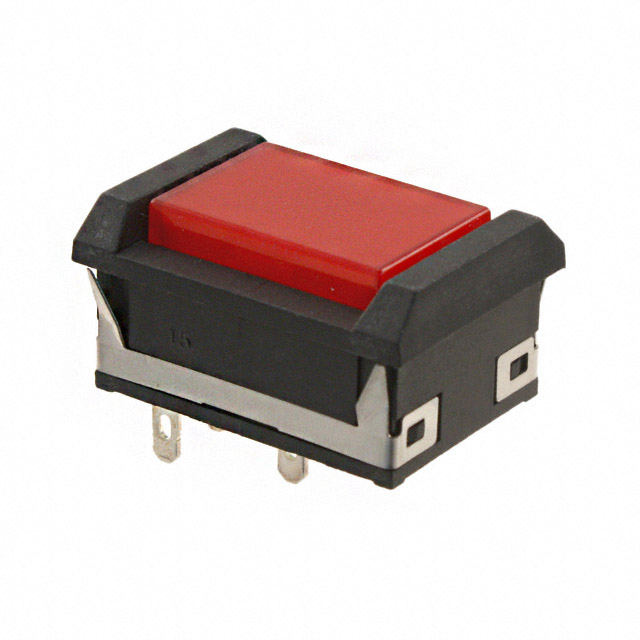

UB16NBKW015C-CB

UB16NBKW015C-CB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB16NBKW015C-CB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB16NBKW015C-CB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	260 pcs	500 pcs	1000 pcs
~~In Stock~~ 13375 pcs
Reference Price (In US Dollars)	1 pcs	20 pcs	40 pcs	60 pcs
	$3.55	$3.284	$3.195	$3.018
	$2.929	$2.751	$2.574	$2.441

Product parameter
Data sheet

Product parameter

Part Number	UB16NBKW015C-CB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13375 pcs	Data sheet	UB Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-On
Series	UB	Panel Cutout Dimensions	Rectangular - 22.40mm x 16.20mm
Packaging	Bulk	Other Names	UB16NBKW015C-CB-RO UB16NBKW015C-CB-RO-ND UB16NBKW015CCB
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	1.85 VDC
Illumination Type, Color	LED, Red	Features	With Barrier
Electrical Life	10,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
Current Rating	5A (AC/DC)	Color - Actuator/Cap	Red (White Filter/Diffuser)
Circuit	SPDT	Actuator Type	Rectangular, Button
