Home > Products > Switches > Pushbutton Switches > UB15SKG03N

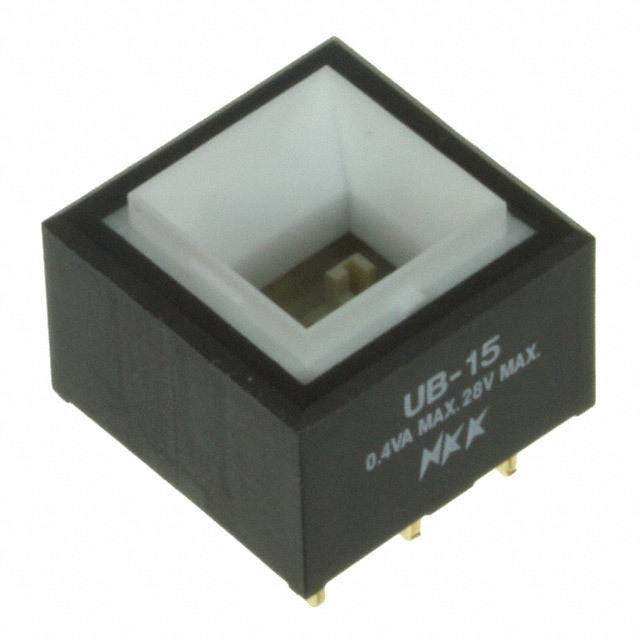

UB15SKG03N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB15SKG03N with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB15SKG03N
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	260 pcs	500 pcs	1000 pcs
~~In Stock~~ 19966 pcs
Reference Price (In US Dollars)	1 pcs	20 pcs	40 pcs	60 pcs
	$2.156	$2.052	$1.949	$1.898
	$1.847	$1.744	$1.641	$1.488

Product parameter
Data sheet

Product parameter

Part Number	UB15SKG03N	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19966 pcs	Data sheet	UB Series Low Profile Pushbutton
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	PC Pin	Switch Function	On-Mom
Series	UB	Panel Cutout Dimensions	-
Packaging	Bulk	Operating Temperature	-20°C ~ 70°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	200,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	-	Circuit	SPDT
Actuator Type	Plunger for Cap
