Home > Products > Switches > Pushbutton Switches > UB15NBKG015F

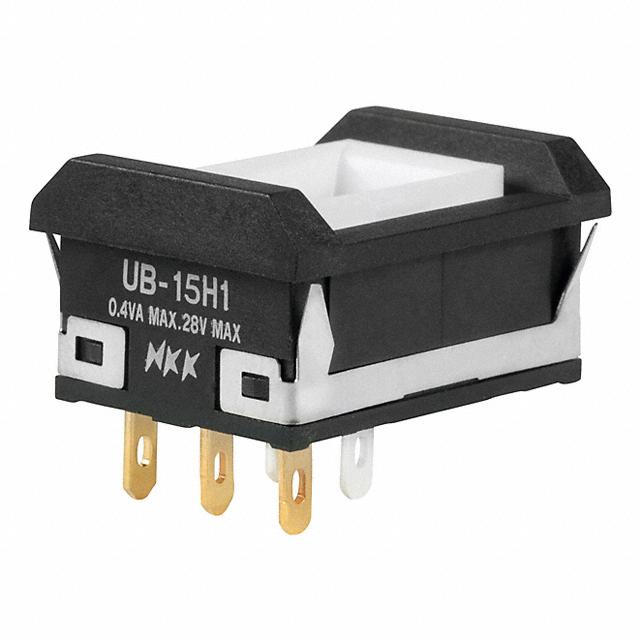

UB15NBKG015F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB15NBKG015F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB15NBKG015F
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 16380 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.429	$3.179	$3.095	$3.012
	$2.844	$2.761	$2.593	$2.342

Product parameter
Data sheet

Product parameter

Part Number	UB15NBKG015F	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16380 pcs	Data sheet	UB Series
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	UB	Panel Cutout Dimensions	Rectangular - 22.40mm x 16.20mm
Packaging	Bulk	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.1 VDC	Illumination Type, Color	LED, Green
Features	With Barrier	Electrical Life	200,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	-	Circuit	SPDT
Actuator Type	Plunger for Cap
