Home > Products > Switches > Pushbutton Switches > UB15NBKG015F-JF

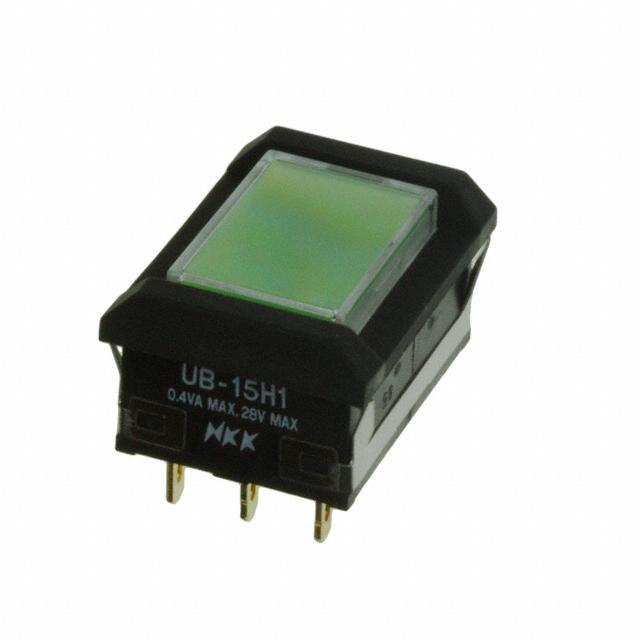

UB15NBKG015F-JF

UB15NBKG015F-JF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB15NBKG015F-JF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB15NBKG015F-JF
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	260 pcs	500 pcs	1000 pcs
~~In Stock~~ 12953 pcs
Reference Price (In US Dollars)	1 pcs	20 pcs	40 pcs	60 pcs
	$3.552	$3.285	$3.197	$3.019
	$2.93	$2.753	$2.575	$2.442

Product parameter
Data sheet

Product parameter

Part Number	UB15NBKG015F-JF	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12953 pcs	Data sheet	UB Series
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	UB	Panel Cutout Dimensions	Rectangular - 22.40mm x 16.20mm
Packaging	Bulk	Other Names	UB15NBKG015FJF
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.1 VDC
Illumination Type, Color	LED, Green	Features	With Barrier
Electrical Life	200,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Clear (Green Filter/Diffuser)
Circuit	SPDT	Actuator Type	Rectangular, Button
