TL22SFAG015F

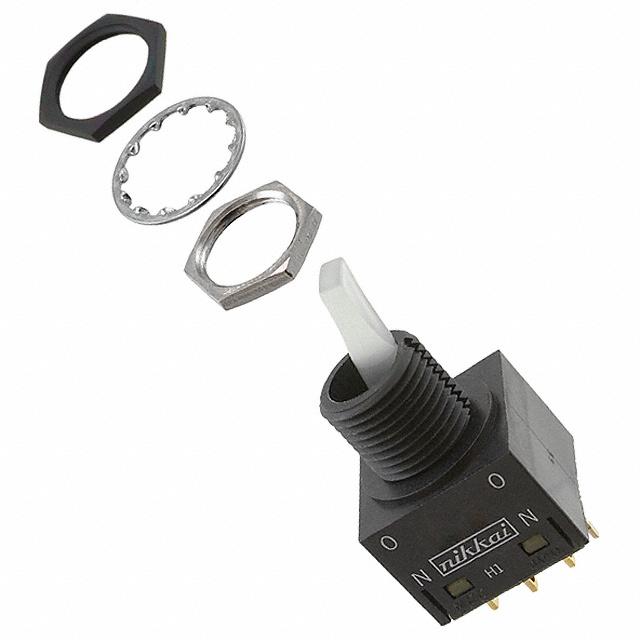

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL22SFAG015F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL22SFAG015F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL22SFAG015F |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE DPDT 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.48 | $4.362 | $4.244 | $4.008 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.891 | $3.773 | $3.183 | $3.065 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL22SFAG015F | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9768 pcs | Data sheet | TL Series Toggle Switch ILLUM |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 28V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | TL |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | Packaging | Bulk |
| Other Names | 360-2933 TL22SFAG015F-ND TL22SFAG015F-RO TL22SFAG015F-RO-ND |
Operating Temperature | -10°C ~ 55°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Illumination Voltage (Nominal) | 2.3 VDC |
| Illumination Type, Color | LED, Green | Illumination | Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 50,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 0.4VA (AC/DC) |
| Circuit | DPDT | Bushing Thread | M12 x 1 |
| Actuator Type | Flatted | Actuator Material | Polycarbonate (PC) |
| Actuator Length | 11.00mm |
