TL22DNAW016G

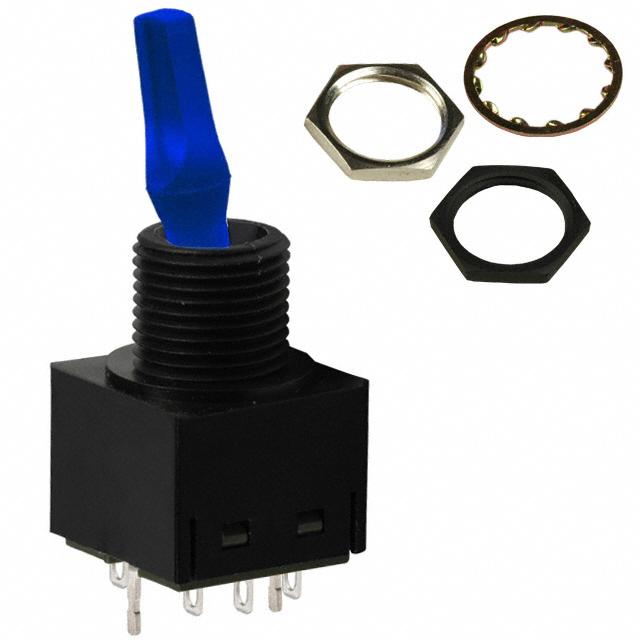

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL22DNAW016G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL22DNAW016G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL22DNAW016G |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE DPDT 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.814 | $4.555 | $4.425 | $4.295 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.165 | $4.034 | $3.384 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL22DNAW016G | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11564 pcs | Data sheet | TL Series Toggle Switch ILLUM |
| Category | Switches | Voltage Rating - DC | 12V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | TL |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | Packaging | Bulk |
| Other Names | 360-1712 360-1712-ND 360-1944 TL22DNAW016G-RO |
Operating Temperature | -10°C ~ 55°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Illumination Voltage (Nominal) | 3.3 VDC |
| Illumination Type, Color | LED, Blue | Illumination | Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 25,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 6A (AC/DC) |
| Circuit | DPDT | Bushing Thread | M12 x 1 |
| Actuator Type | Flatted | Actuator Material | Polycarbonate (PC) |
| Actuator Length | 17.50mm |
