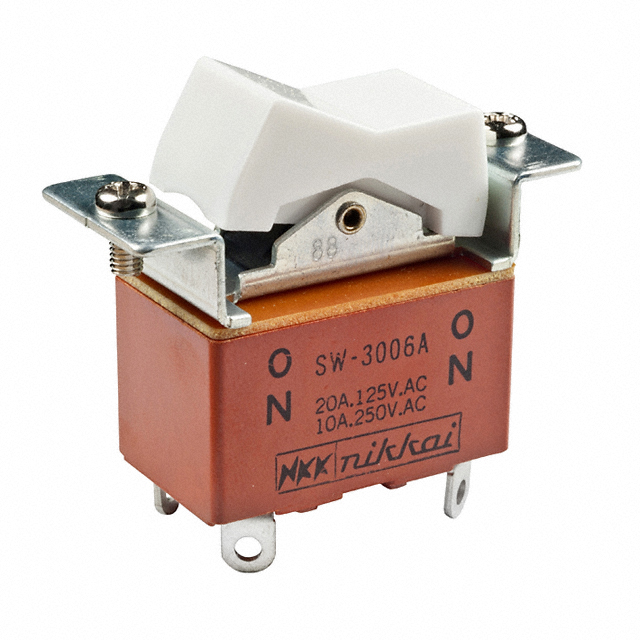

SW3006A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SW3006A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SW3006A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SW3006A |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROCKER DPDT 20A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.261 | $2.096 | $1.985 | $1.958 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.93 | $1.875 | $1.71 | $1.544 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SW3006A | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROCKER DPDT 20A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20962 pcs | Data sheet | SW Series Medium Cap Rocker Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | SW |
| Panel Cutout Dimensions | - | Packaging | Bulk |
| Other Names | 360-1498 360-1498-ND 360-3212 SW3006A-ND SW3006A-RO SW3006A-RO-ND |
Operating Temperature | -10°C ~ 70°C |
| Mounting Type | Panel Mount, Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 30,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | Dust Proof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Features | - | Electrical Life | 10,000 Cycles |
| Detailed Description | Rocker Switch DPDT 20A (AC/DC) 125V Panel Mount, Flange | Current Rating | 20A (AC/DC) |
| Color - Actuator/Cap | White | Circuit | DPDT |
| Actuator Type | Concave (Standard V) | Actuator Marking | No Marking |
