Home > Products > Switches > Rocker Switches > SW3001A

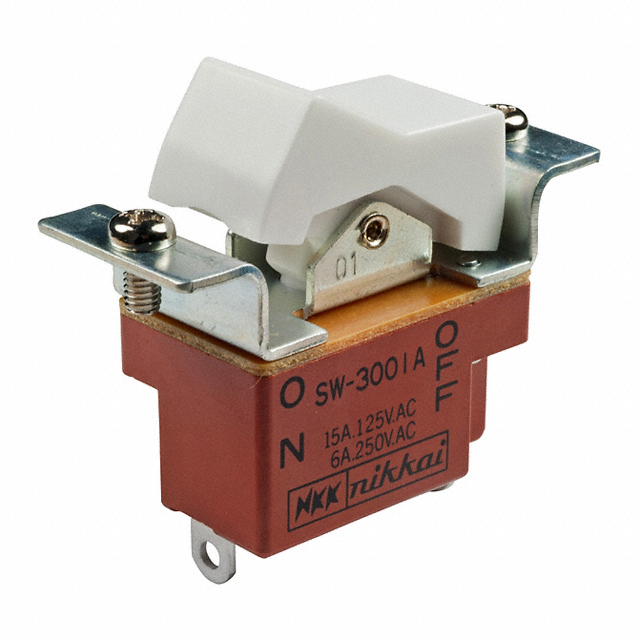

SW3001A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SW3001A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SW3001A
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPST 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 38818 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.364	$1.331	$1.268	$1.205
	$1.141	$1.109	$1.078	$0.951

Product parameter
Data sheet

Product parameter

Part Number	SW3001A	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPST 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38818 pcs	Data sheet	SW Series Medium Cap Rocker Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Off	Series	SW
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-2926 SW3001A-ND SW3001A-RO SW3001A-RO-ND	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount, Flange	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch SPST 15A (AC/DC) 125V Panel Mount, Flange	Current Rating	15A (AC/DC)
Color - Actuator/Cap	White	Circuit	SPST
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
