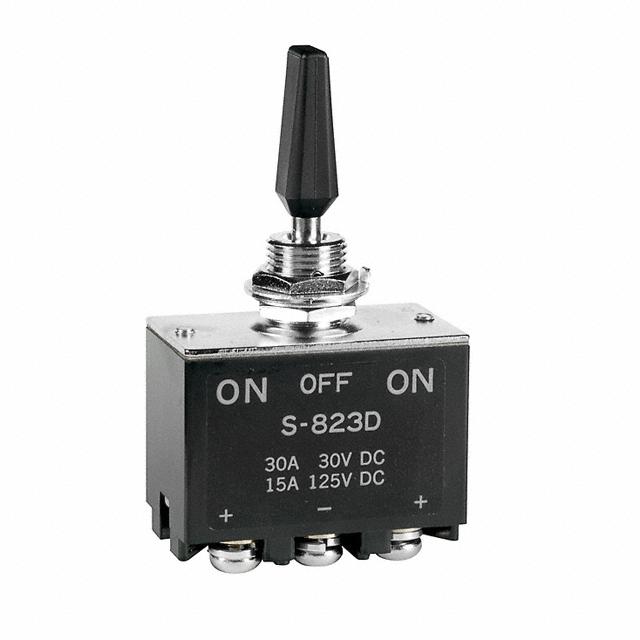

S823D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S823D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S823D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S823D |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE DPDT 30A 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $9.58 | $9.015 | $8.452 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $7.888 | $7.606 | $7.325 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | S823D | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 30A 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4284 pcs | Data sheet | S Series Toggle High Cap Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Termination Style | Screw Terminal | Switch Function | On-Off-On |
| Series | S | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Packaging | Bulk | Other Names | 360-2913 S823D-ND S823D-RO S823D-RO-ND |
| Operating Temperature | -10°C ~ 70°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Electrical Life | 10,000 Cycles | Detailed Description | Toggle Switch DPDT Panel Mount |
| Current Rating | 30A (DC) | Circuit | DPDT |
| Bushing Thread | M12 x 1 | Actuator Type | Flatted |
| Actuator Material | Brass, Chrome Plated | Actuator Length | 27.00mm |
