Home > Products > Switches > Toggle Switches > S823/CUL

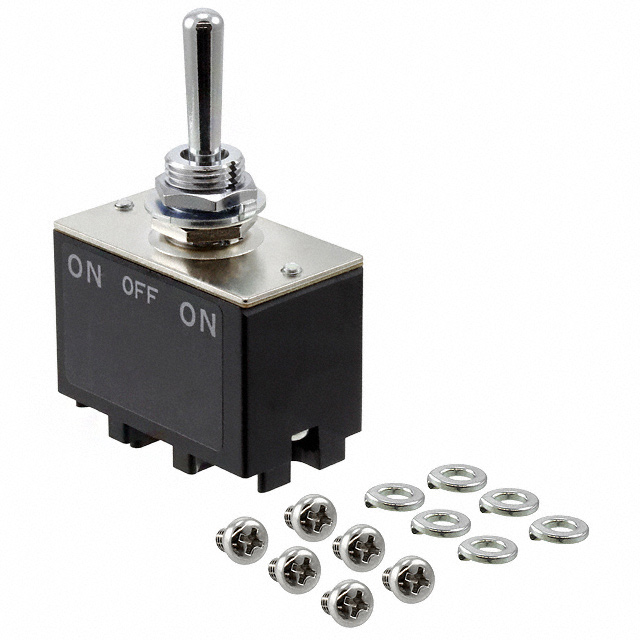

S823/CUL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S823/CUL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S823/CUL
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 30A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3849 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$8.464

Product parameter
Data sheet

Product parameter

Part Number	S823/CUL	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 30A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3849 pcs	Data sheet	S Series Toggle High Cap Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-Off-On	Series	S
Panel Cutout Dimensions	Circular - 12.50mm Dia	Packaging	Bulk
Other Names	360-3165 S823/CUL-ND	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	30A (AC/DC)
Circuit	DPDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	22.00mm
