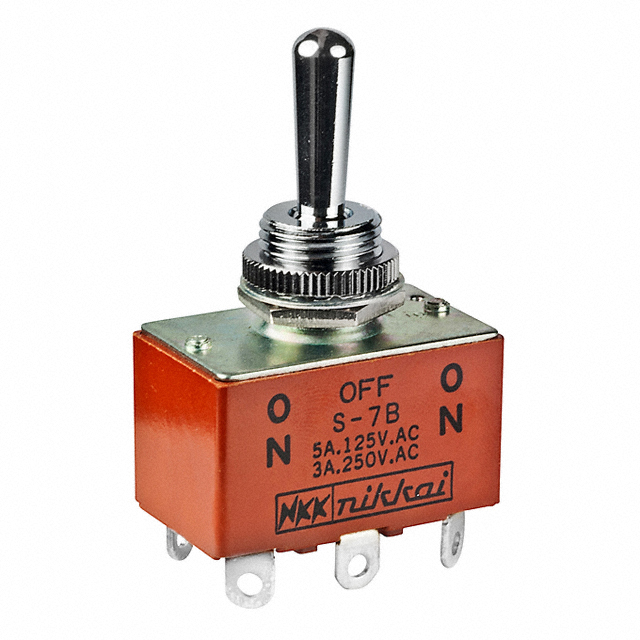

S7B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S7B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S7B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S7B |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE DPDT 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | S7B | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5106 pcs | Data sheet | |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Off-On | Series | S |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | Packaging | Bulk |
| Other Names | S7B-RO S7B-RO-ND |
Operating Temperature | -10°C ~ 70°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Electrical Life | 25,000 Cycles | Detailed Description | Toggle Switch DPDT Panel Mount |
| Current Rating | 5A (AC/DC) | Circuit | DPDT |
| Bushing Thread | M12 x 1 | Actuator Type | Standard Round |
| Actuator Material | Brass, Chrome Plated | Actuator Length | 17.50mm |
