Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > S7B-ZR-SM4A-TF(LF)(SN)

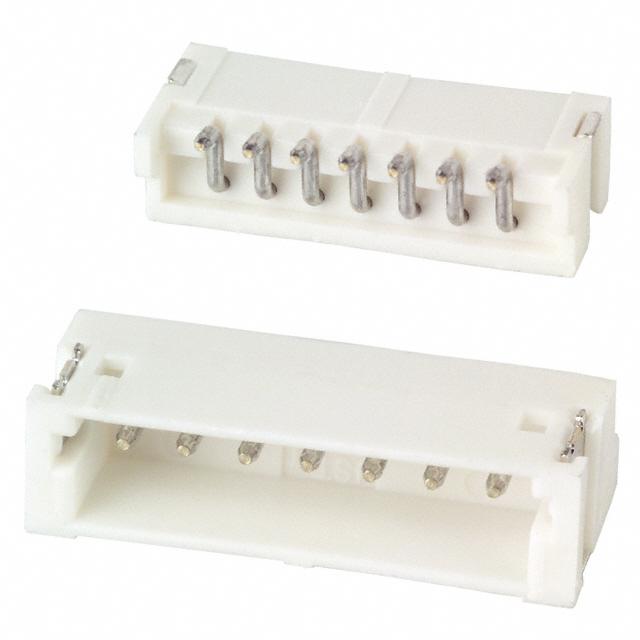

S7B-ZR-SM4A-TF(LF)(SN)

S7B-ZR-SM4A-TF(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S7B-ZR-SM4A-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number S7B-ZR-SM4A-TF(LF)(SN)
Manufacturer JST
Description CONN HEADER ZH SIDE 7POS 1.5MM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 161071 pcs
Reference Price
(In US Dollars)		1000 pcs2000 pcs3000 pcs
$0.148$0.143$0.134
5000 pcs10000 pcs25000 pcs
$0.13$0.121$0.117

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.148

Product parameter

Part Number S7B-ZR-SM4A-TF(LF)(SN) Manufacturer JST
Description CONN HEADER ZH SIDE 7POS 1.5MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 161071 pcs Data sheet ZH Series Datasheet
Category Connectors, Interconnects Voltage Rating 50V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series ZH
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Tape & Reel (TR) Overall Contact Length -
Other Names (D)S7B-ZR-SM4A-TF(LF)(SN)
455-1697-2
S7BZRSM4ATFLFSN		 Operating Temperature -25°C ~ 85°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 7 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA6T), Nylon 6T
Insulation Height 0.146" (3.70mm) Insulation Color Natural
Ingress Protection - Features Solder Retention
Fastening Type Detent Lock Detailed Description Connector Header Surface Mount, Right Angle 7 position 0.059" (1.50mm)
Current Rating 1A Contact Type Male Pin
Contact Shape Circular Contact Material Brass
Contact Length - Post - Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
