Home > Products > Switches > Slide Switches > MS23BFW01

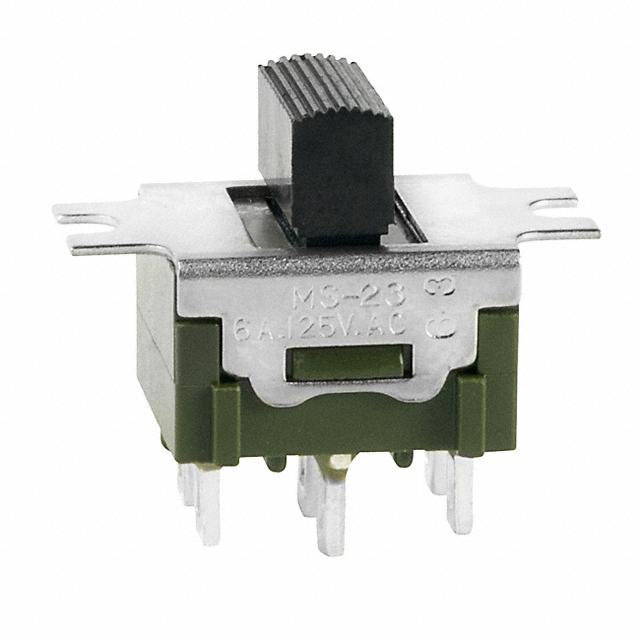

MS23BFW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS23BFW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS23BFW01
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 27964 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.806	$1.766	$1.687	$1.491
	$1.471	$1.452	$1.197	$1.118

Product parameter
Data sheet

Product parameter

Part Number	MS23BFW01	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27964 pcs	Data sheet	MS Series Miniature Slides Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Travel	3.50mm
Switch Function	On-Off-On	Series	MS
Packaging	Bulk	Other Names	360-2887 MS23BFW01-ND
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Slide Switch DPDT Panel Mount
Current Rating	6A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Silver Alloy	Contact Finish	Silver
Circuit	DPDT	Actuator Type	Standard
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled	Actuator Length	5.10mm
