Home > Products > Switches > Slide Switches > MS23ASG30

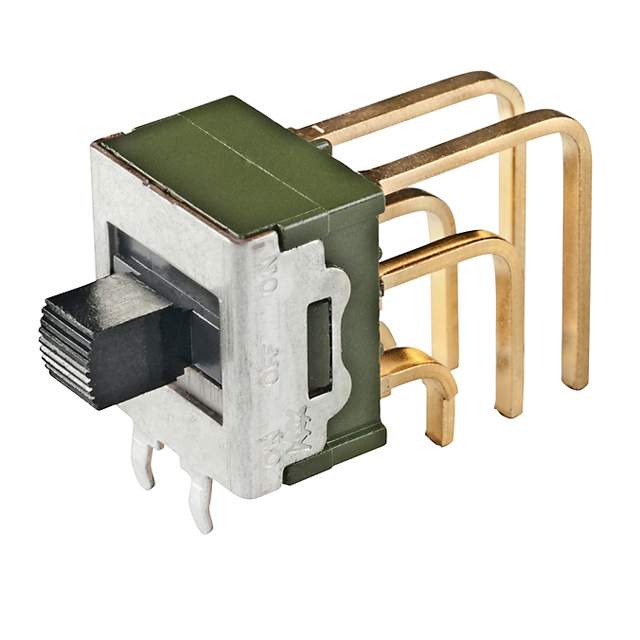

MS23ASG30

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS23ASG30 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS23ASG30
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 22160 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.634	$2.604	$2.572	$2.353
	$2.259	$2.133	$1.882	$1.694

Product parameter
Data sheet

Product parameter

Part Number	MS23ASG30	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22160 pcs	Data sheet	MS Series Miniature Slides Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Travel	3.50mm	Switch Function	On-Off-On
Series	MS	Packaging	Bulk
Other Names	MS23ASG30-RO MS23ASG30-RO-ND	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Copper
Contact Finish	Gold	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
