Home > Products > Switches > Slide Switches > MS22ANG03

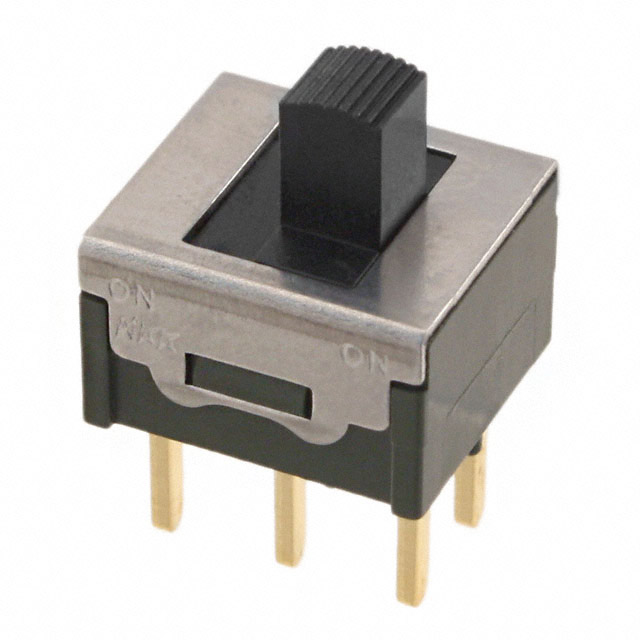

MS22ANG03

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS22ANG03 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS22ANG03
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 27307 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.107	$2.08	$2.055	$1.88
	$1.805	$1.704	$1.504	$1.354

Product parameter
Data sheet

Product parameter

Part Number	MS22ANG03	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27307 pcs	Data sheet	MS Series Miniature Slides Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Travel	2.20mm	Switch Function	On-On
Series	MS	Packaging	Bulk
Other Names	360-2384 MS22ANG03-ND	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole	Current Rating	0.4VA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Copper
Contact Finish	Gold	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
