Home > Products > Switches > Slide Switches > MS22ANG03/U

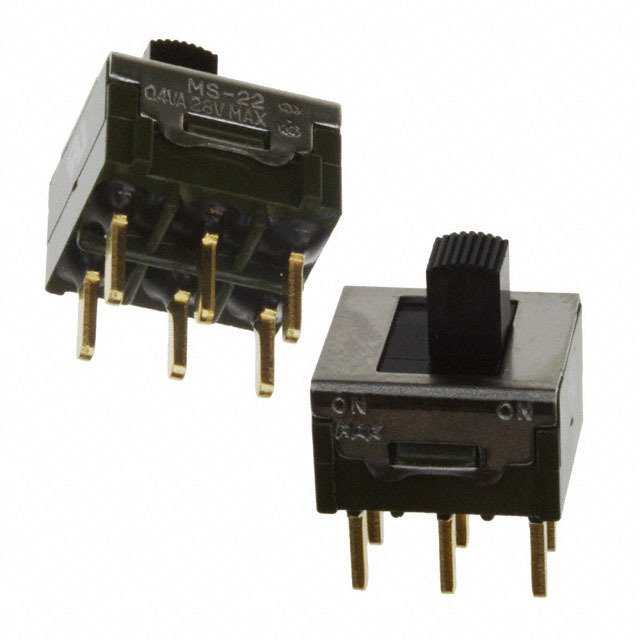

MS22ANG03/U

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS22ANG03/U with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS22ANG03/U
Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 22220 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.228	$2.18	$2.083	$1.841
	$1.817	$1.793	$1.478	$1.381

Product parameter
Data sheet

Product parameter

Part Number	MS22ANG03/U	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22220 pcs	Data sheet	MS Series Miniature Slides Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Travel	2.20mm	Switch Function	On-On
Series	MS	Packaging	Bulk
Other Names	MS22ANG03U	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Slide Switch DPDT Through Hole	Current Rating	0.4VA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Copper
Contact Finish	Gold	Circuit	DPDT
Actuator Type	Standard	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
