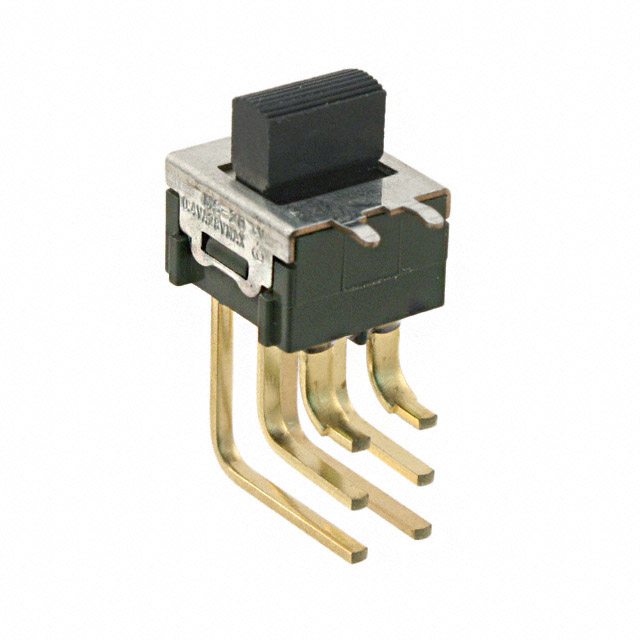

MS20BSG40
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS20BSG40 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS20BSG40 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS20BSG40 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH SLIDE SP3T 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.067 | $3.031 | $2.994 | $2.739 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.629 | $2.483 | $2.191 | $1.972 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS20BSG40 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH SLIDE SP3T 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17705 pcs | Data sheet | MS Series Miniature Slides Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 28V | Termination Style | PC Pin |
| Switch Travel | 3.50mm | Switch Function | On-On-On |
| Series | MS | Packaging | Bulk |
| Other Names | MS20BSG40-RO MS20BSG40-RO-ND |
Operating Temperature | -30°C ~ 85°C |
| Operating Force | - | Mounting Type | Through Hole, Right Angle, Vertical |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Jumper needed to achieve triple throw | Electrical Life | 50,000 Cycles |
| Detailed Description | Slide Switch SP3T Through Hole, Right Angle, Vertical | Current Rating | 0.4VA (AC/DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Copper |
| Contact Finish | Gold | Circuit | SP3T |
| Actuator Type | Standard | Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Length | 5.10mm |
