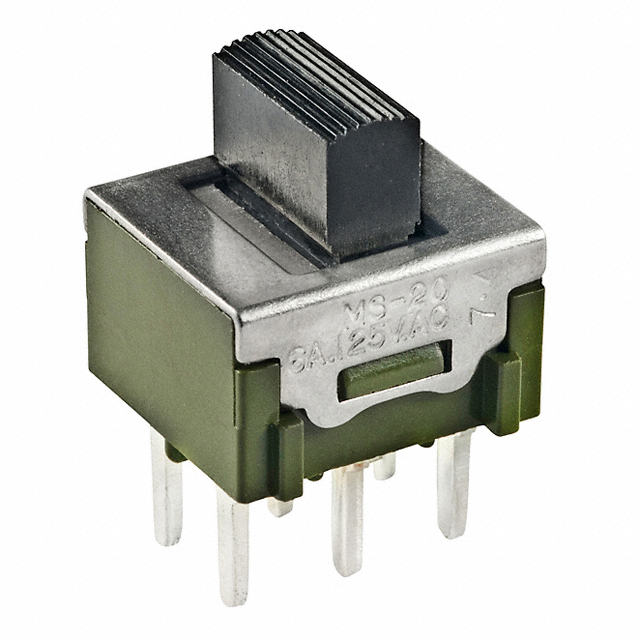

MS20BNW03
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS20BNW03 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS20BNW03 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS20BNW03 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH SLIDE SP3T 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.122 | $2.098 | $2.072 | $1.895 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.819 | $1.718 | $1.516 | $1.365 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS20BNW03 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH SLIDE SP3T 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28838 pcs | Data sheet | MS Series Miniature Slides Datasheet |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | PC Pin | Switch Travel | 3.50mm |
| Switch Function | On-On-On | Series | MS |
| Packaging | Bulk | Other Names | MS20BNW03-RO MS20BNW03-RO-ND |
| Operating Temperature | -30°C ~ 85°C | Operating Force | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Jumper needed to achieve triple throw |
| Electrical Life | 25,000 Cycles | Detailed Description | Slide Switch SP3T Through Hole |
| Current Rating | 6A (AC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Silver Alloy | Contact Finish | Silver |
| Circuit | SP3T | Actuator Type | Standard |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled | Actuator Length | 5.10mm |
