Home > Products > Switches > Slide Switches > MS12ANW03

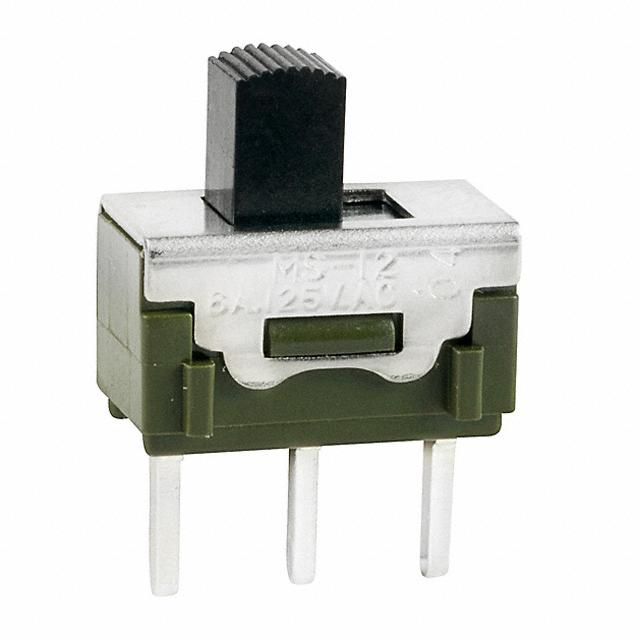

MS12ANW03

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS12ANW03 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS12ANW03
Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 56281 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.222	$1.17	$1.119	$0.992	$0.966
	$0.954	$0.788	$0.738	$0.687

Product parameter
Data sheet

Product parameter

Part Number	MS12ANW03	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56281 pcs	Data sheet	MS Series Miniature Slides Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Travel	2.20mm
Switch Function	On-On	Series	MS
Packaging	Bulk	Other Names	360-2385 MS12ANW03-ND MS12ANW03-RO MS12ANW03-RO-ND
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Slide Switch SPDT Through Hole	Current Rating	6A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Alloy
Contact Finish	Silver	Circuit	SPDT
Actuator Type	Standard	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
