Home > Products > Switches > Slide Switches > MS12ANA03

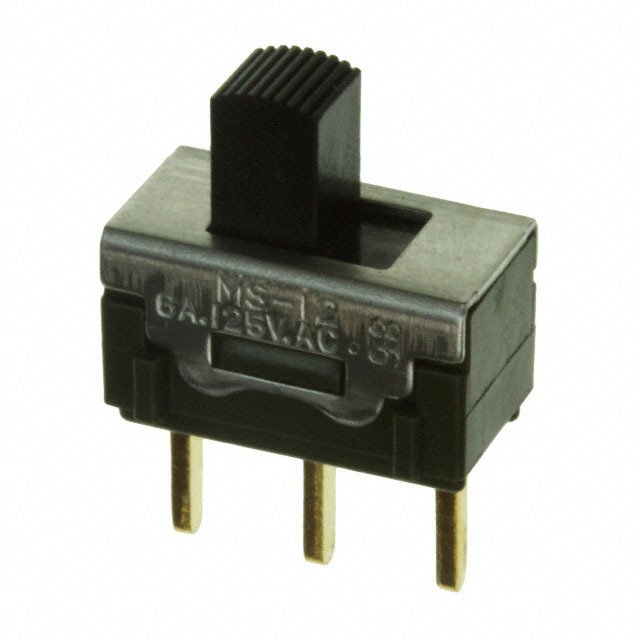

MS12ANA03

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS12ANA03 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS12ANA03
Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 36894 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.55	$1.516	$1.449	$1.28
	$1.263	$1.246	$1.027	$0.96

Product parameter
Data sheet

Product parameter

Part Number	MS12ANA03	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36894 pcs	Data sheet	MS Series Miniature Slides Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Travel	2.20mm
Switch Function	On-On	Series	MS
Packaging	Bulk	Other Names	360-3456 MS12ANA03-ND MS12ANA03-RO MS12ANA03-RO-ND
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Slide Switch SPDT Through Hole
Current Rating	6A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Silver Alloy	Contact Finish	Gold
Circuit	SPDT	Actuator Type	Standard
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled	Actuator Length	5.10mm
