Home > Products > Switches > Pushbutton Switches > MB2461JW01-A-2A-C

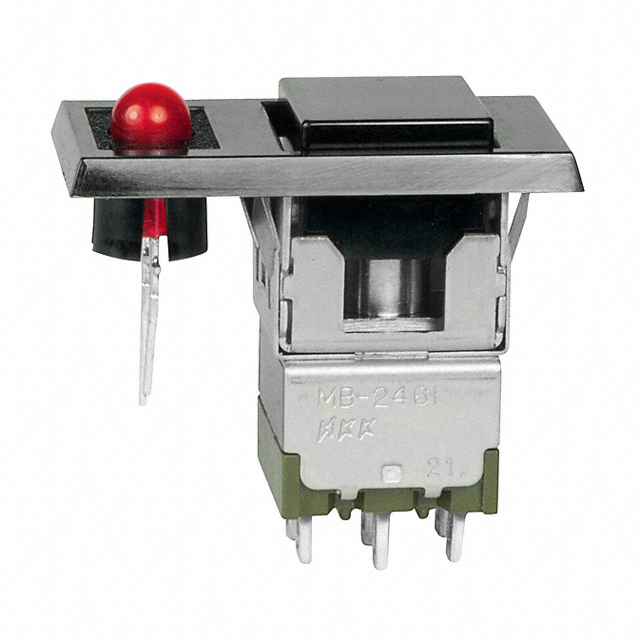

MB2461JW01-A-2A-C

MB2461JW01-A-2A-C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB2461JW01-A-2A-C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MB2461JW01-A-2A-C
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 15213 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.375	$3.127	$3.045	$2.962
	$2.798	$2.715	$2.551	$2.304

Product parameter
Data sheet

Product parameter

Part Number	MB2461JW01-A-2A-C	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15213 pcs	Data sheet	MB2400 Series, Snap-Action Snap-In Mnt
Category	Switches	Voltage Rating - AC	125V
Type	Standard, Illuminated	Termination Style	Solder Lug
Switch Function	On-Mom	Series	MB2400
Panel Cutout Dimensions	Rectangular - 15.00mm x 13.10mm	Packaging	Bulk
Other Names	360-3332 MB2461JW01-A-2A-C-ND MB2461JW01-A-2A-C-RO MB2461JW01-A-2A-C-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.8 VDC	Illumination Type, Color	LED, Red
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	3A (AC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Square, Button
