Home > Products > Switches > Pushbutton Switches > MB2461E1W03-HC

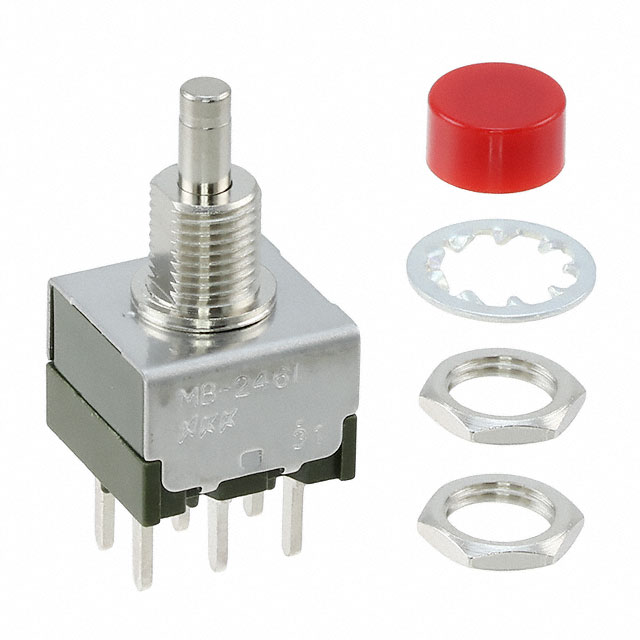

MB2461E1W03-HC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB2461E1W03-HC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MB2461E1W03-HC
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5458 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MB2461E1W03-HC	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5458 pcs	Data sheet	MB2400 Bushing Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Type	Standard	Termination Style	PC Pin
Switch Function	On-Mom	Series	MB2400
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	360-3146 MB2461E1W03-HC-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Rear	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Rear
Current Rating	3A (AC)	Color - Actuator/Cap	Red
Circuit	DPDT	Actuator Type	Round, Button
