Home > Products > Switches > Toggle Switches > M2113TFW01

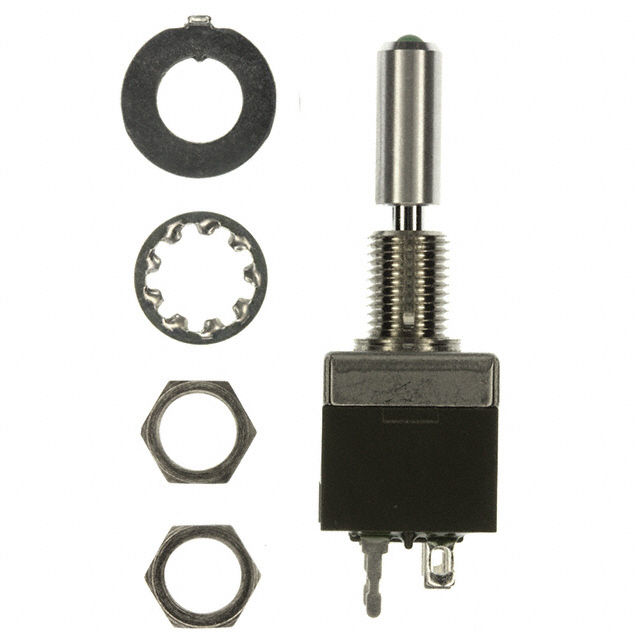

M2113TFW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2113TFW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2113TFW01
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4077 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	M2113TFW01	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4077 pcs	Data sheet	M2100 Series, LED Tipped Toggles
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	M2100
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	360-2316 M2113TFW01-RO M2113TFW01-RO-ND	Operating Temperature	-10°C ~ 55°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.2 VDC	Illumination Type, Color	LED, Green
Illumination	Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Toggle Switch SPDT Panel Mount
Current Rating	6A (AC), 3A (DC)	Circuit	SPDT
Bushing Thread	1/4-40	Actuator Type	Standard Round
Actuator Material	-	Actuator Length	14.70mm
