Home > Products > Switches > Toggle Switches > M2113TEFW01

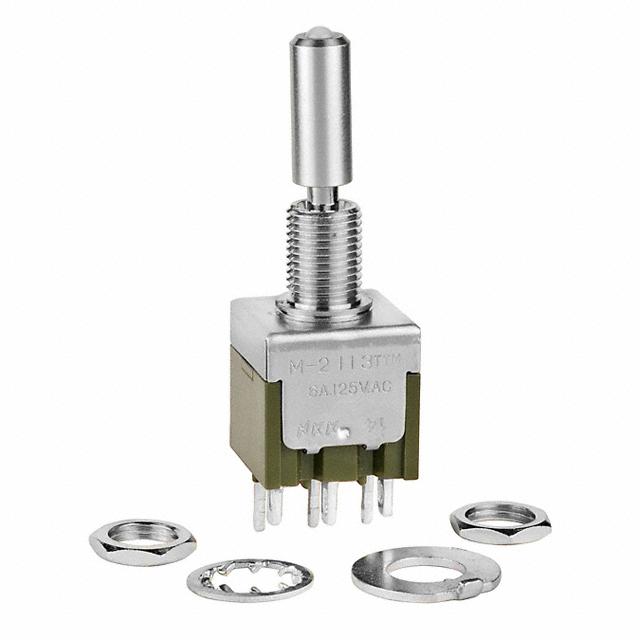

M2113TEFW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2113TEFW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2113TEFW01
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 15835 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.171	$3.087	$3.003	$2.836
	$2.753	$2.669	$2.252	$2.169

Product parameter
Data sheet

Product parameter

Part Number	M2113TEFW01	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15835 pcs	Data sheet	M2100 Series, LED Tipped Toggles
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	M2100
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	360-3331 M2113TEFW01-ND M2113TEFW01-RO M2113TEFW01-RO-ND	Operating Temperature	-10°C ~ 55°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.1 VDC
Illumination Type, Color	LED, Green/Yellow	Illumination	Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	6A (AC), 3A (DC)
Circuit	SPDT	Bushing Thread	1/4-40
Actuator Type	Standard Round	Actuator Material	-
Actuator Length	14.70mm
