Home > Products > Switches > Rocker Switches > M2023TYG01-JA

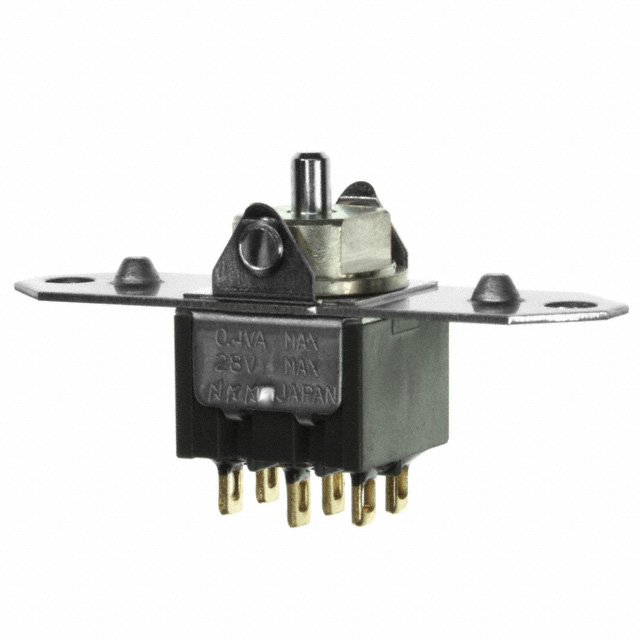

M2023TYG01-JA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2023TYG01-JA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2023TYG01-JA
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 12205 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$2.877

Product parameter
Data sheet

Product parameter

Part Number	M2023TYG01-JA	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12205 pcs	Data sheet	M Series, Mini Rocker Flat Frame
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	M
Panel Cutout Dimensions	Rectangular - 28.50mm x 16.00mm	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Rocker Switch DPDT 0.4VA (AC/DC) 28V Panel Mount, Flange
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Concave (Standard V)
Actuator Marking	No Marking
