Home > Products > Switches > Rocker Switches > M2023TXW23

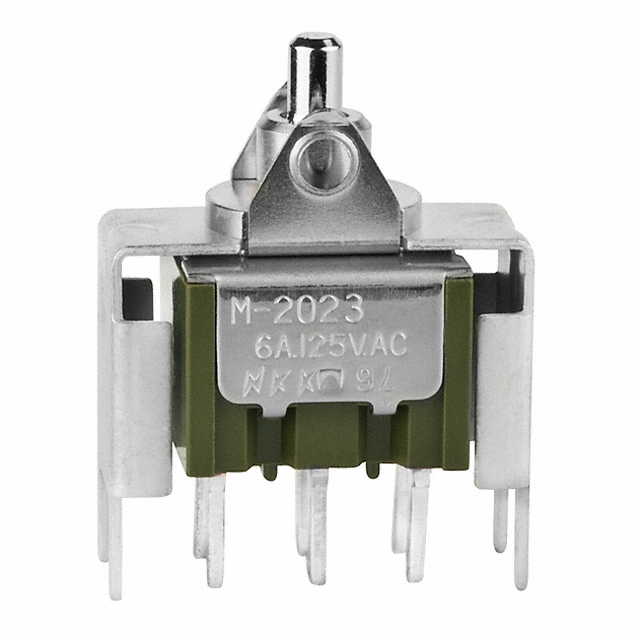

M2023TXW23

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2023TXW23 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2023TXW23
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5203 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	M2023TXW23	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5203 pcs	Data sheet	M Series, Mini Rockers Bracket
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-Off-On	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	M2023TXW23-RO M2023TXW23-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch DPDT 6A (AC), 3A (DC) 125V Through Hole
Current Rating	6A (AC), 3A (DC)	Color - Actuator/Cap	-
Circuit	DPDT	Actuator Type	Actuator Arm, Cap Required
Actuator Marking	Varies by Cap
