Home > Products > Switches > Rocker Switches > M2012TXW15

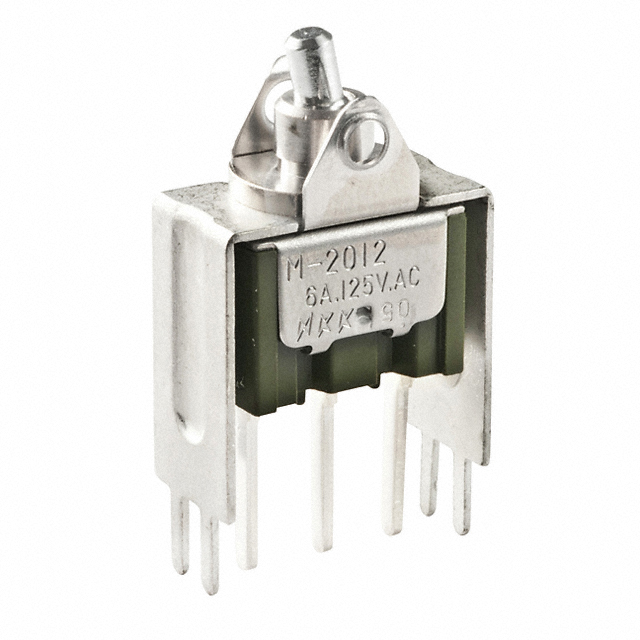

M2012TXW15

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2012TXW15 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2012TXW15
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 32711 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.574	$1.538	$1.465	$1.392
	$1.318	$1.282	$1.245	$1.099

Product parameter
Data sheet

Product parameter

Part Number	M2012TXW15	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32711 pcs	Data sheet	M Series, Mini Rockers Bracket
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-On	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	M2012TXW15-RO M2012TXW15-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch SPDT 6A (AC), 4A (DC) 125V Through Hole	Current Rating	6A (AC), 4A (DC)
Color - Actuator/Cap	-	Circuit	SPDT
Actuator Type	Actuator Arm, Cap Required	Actuator Marking	Varies by Cap
