Home > Products > Switches > Rocker Switches > M2012TXW15-DH

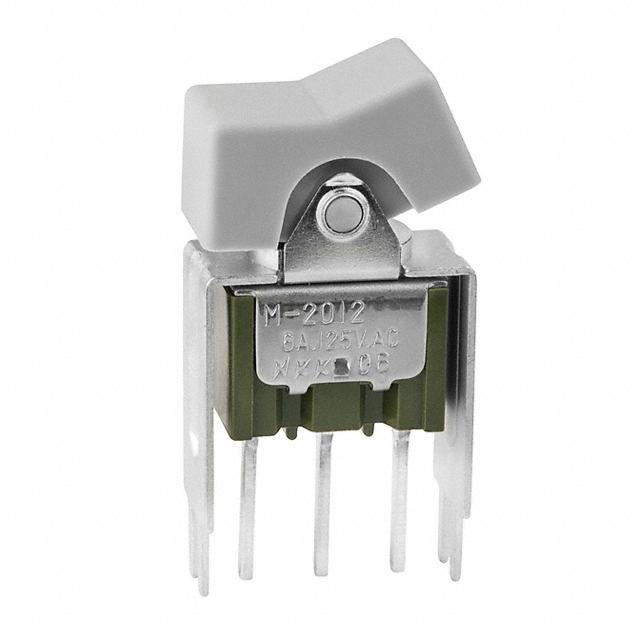

M2012TXW15-DH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2012TXW15-DH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2012TXW15-DH
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 25813 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.746	$1.704	$1.623	$1.542
	$1.46	$1.42	$1.379	$1.217

Product parameter
Data sheet

Product parameter

Part Number	M2012TXW15-DH	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25813 pcs	Data sheet	M Series, Mini Rockers Bracket
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-On	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	M2012TXW15-DH-RO M2012TXW15-DH-RO-ND M2012TXW15DH	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch SPDT 6A (AC), 4A (DC) 125V Through Hole	Current Rating	6A (AC), 4A (DC)
Color - Actuator/Cap	Gray	Circuit	SPDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
