Home > Products > Switches > Pushbutton Switches > KB25CKW01-5F-JF

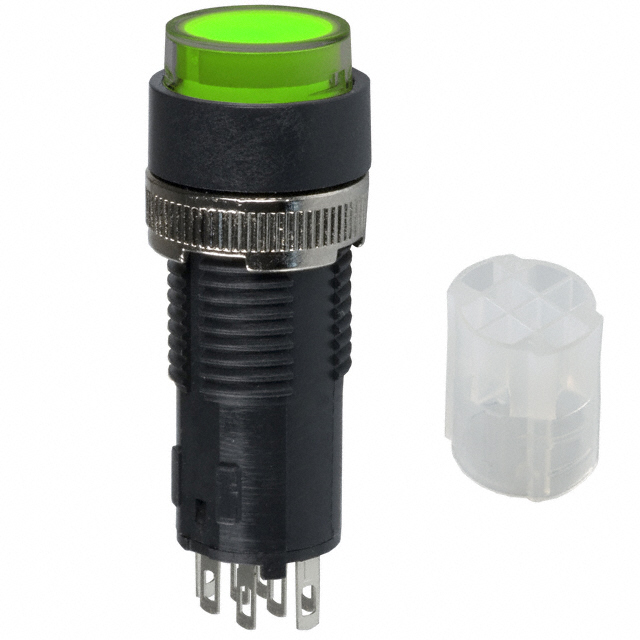

KB25CKW01-5F-JF

KB25CKW01-5F-JF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB25CKW01-5F-JF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB25CKW01-5F-JF
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 1A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 14695 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.806	$3.521	$3.426	$3.235
	$3.14	$2.95	$2.759	$2.617

Product parameter
Data sheet

Product parameter

Part Number	KB25CKW01-5F-JF	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14695 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Other Names	360-1627 360-1627-ND 360-2004 KB25CKW01-5F-JF-RO KB25CKW015FJF
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.1 VDC
Illumination Type, Color	LED, Green	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
Current Rating	1A (AC/DC)	Color - Actuator/Cap	Clear (Green Filter/Diffuser)
Circuit	DPDT	Actuator Type	Round, Button
