Home > Products > Switches > Pushbutton Switches > KB25CKW01-5C24-JC

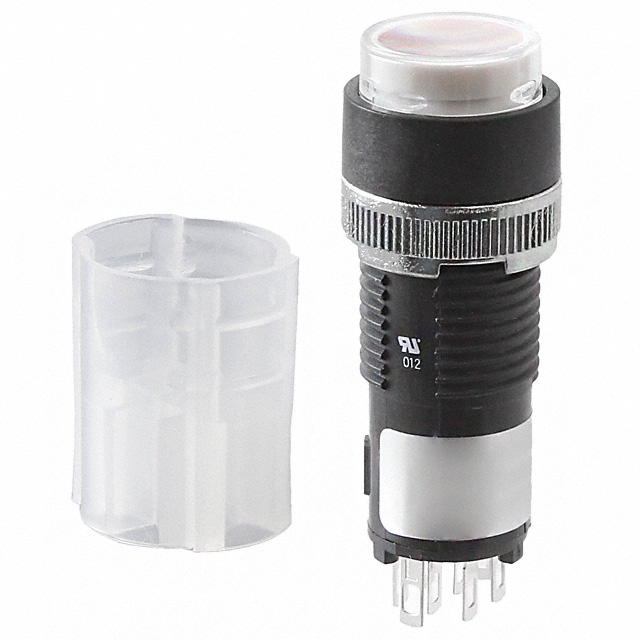

KB25CKW01-5C24-JC

KB25CKW01-5C24-JC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB25CKW01-5C24-JC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB25CKW01-5C24-JC
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 1A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7235 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$5.457

Product parameter
Data sheet

Product parameter

Part Number	KB25CKW01-5C24-JC	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7235 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Tray	Other Names	360-2960
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	24 VDC
Illumination Type, Color	LED, Red	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
Current Rating	1A (AC/DC)	Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Circuit	DPDT	Actuator Type	Round, Button
