Home > Products > Switches > Rocker Switches > JWL22RAA/UCV

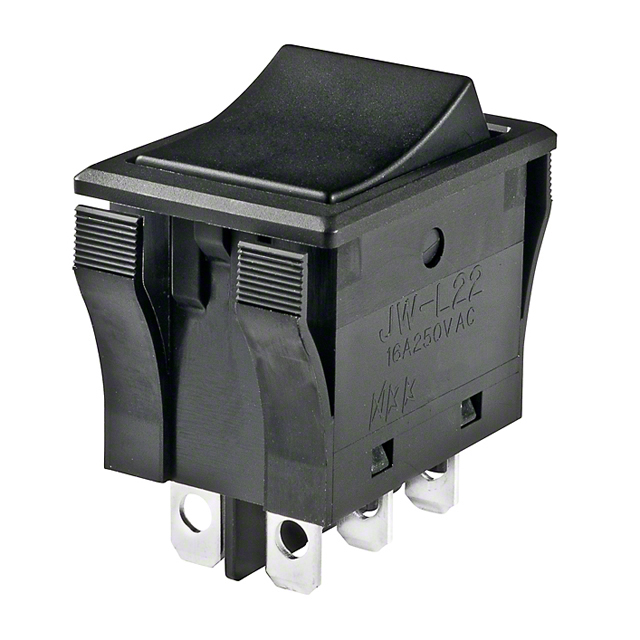

JWL22RAA/UCV

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JWL22RAA/UCV with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JWL22RAA/UCV
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 13226 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.117	$3.706	$3.603	$3.50
	$3.397	$3.294	$2.882	$2.728

Product parameter
Data sheet

Product parameter

Part Number	JWL22RAA/UCV	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13226 pcs	Data sheet	JW Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder, Quick Connect - 0.187" (4.7mm)	Switch Function	On-On
Series	JW	Panel Cutout Dimensions	Rectangular - 29.50mm x 20.50mm
Packaging	Bulk	Other Names	JWL22RAAUCV
Operating Temperature	-25°C ~ 70°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	25,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	Dust Proof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch DPDT 16A (AC) 125V Panel Mount, Snap-In
Current Rating	16A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
