Home > Products > Switches > Rocker Switches > JWL21RC2A/UCV

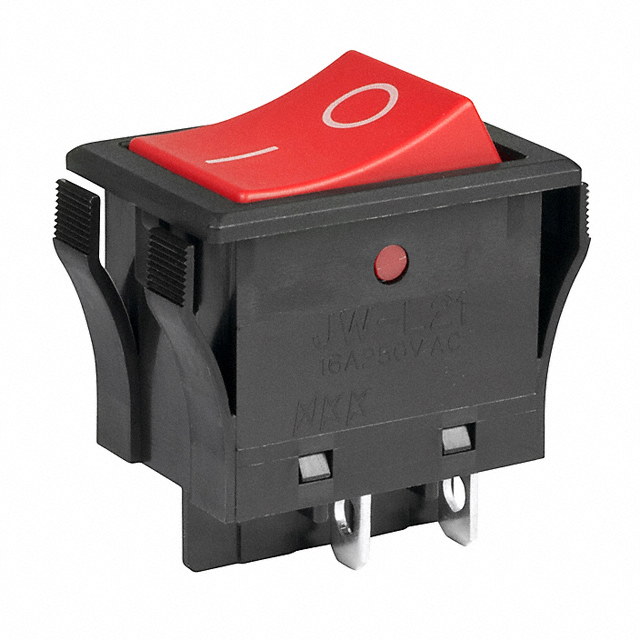

JWL21RC2A/UCV

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JWL21RC2A/UCV with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JWL21RC2A/UCV
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8272 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.686

Product parameter
Data sheet

Product parameter

Part Number	JWL21RC2A/UCV	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8272 pcs	Data sheet	JW Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder, Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off
Series	JW	Panel Cutout Dimensions	Rectangular - 29.50mm x 20.50mm
Packaging	Bulk	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	25,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	Dust Proof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch DPST 16A (AC) 125V Panel Mount, Snap-In	Current Rating	16A (AC)
Color - Actuator/Cap	Red	Circuit	DPST
Actuator Type	Concave (Curved)	Actuator Marking	O -
