Home > Products > Switches > Tactile Switches > JB15KH

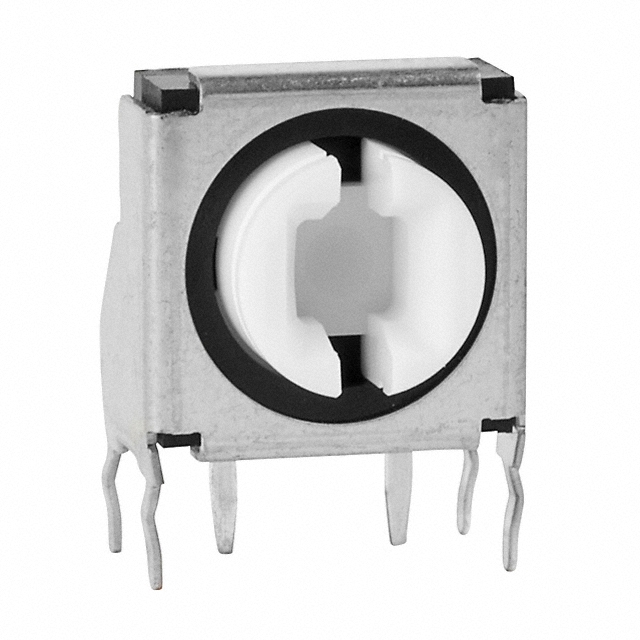

JB15KH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15KH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JB15KH
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 93392 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.782	$0.753	$0.693	$0.603	$0.573
	$0.558	$0.542	$0.422	$0.392

Product parameter
Data sheet

Product parameter

Part Number	JB15KH	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	93392 pcs	Data sheet	JB Series Low Profile Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.25mm	Switch Function	Off-Mom
Series	JB	Packaging	Bulk
Outline	10.80mm x 10.80mm	Other Names	360-2814 JB15KH-ND JB15KH-RO JB15KH-RO-ND
Operating Temperature	-25°C ~ 70°C	Operating Force	176gf
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	5,000,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Plunger for Cap
Actuator Orientation	Side Actuated	Actuator Material	-
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	-
