Home > Products > Switches > Tactile Switches > JB15KH-6C

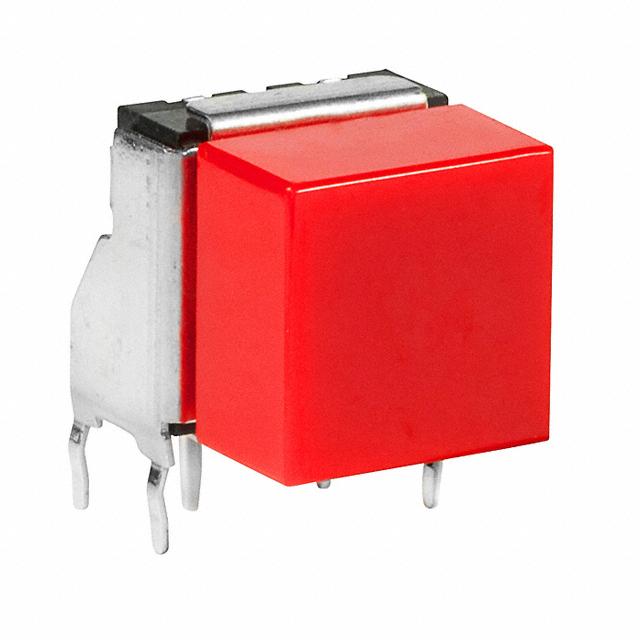

JB15KH-6C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15KH-6C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JB15KH-6C
Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 65262 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.099	$1.056	$0.972	$0.845	$0.803
	$0.782	$0.761	$0.592	$0.549

Product parameter
Data sheet

Product parameter

Part Number	JB15KH-6C	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65262 pcs	Data sheet	JB Series Low Profile Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.25mm	Switch Function	Off-Mom
Series	JB	Packaging	Bulk
Outline	10.80mm x 10.80mm	Other Names	360-2813 JB15KH-6C-ND JB15KH-6C-RO JB15KH-6C-RO-ND JB15KH6C
Operating Temperature	-25°C ~ 70°C	Operating Force	176gf
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	5,000,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Side Actuated	Actuator Material	Polyacetal
Actuator Length, Right Angle	7.76mm	Actuator Height off PCB, Vertical	-
