Home > Products > Switches > Tactile Switches > JB15HKH-6A

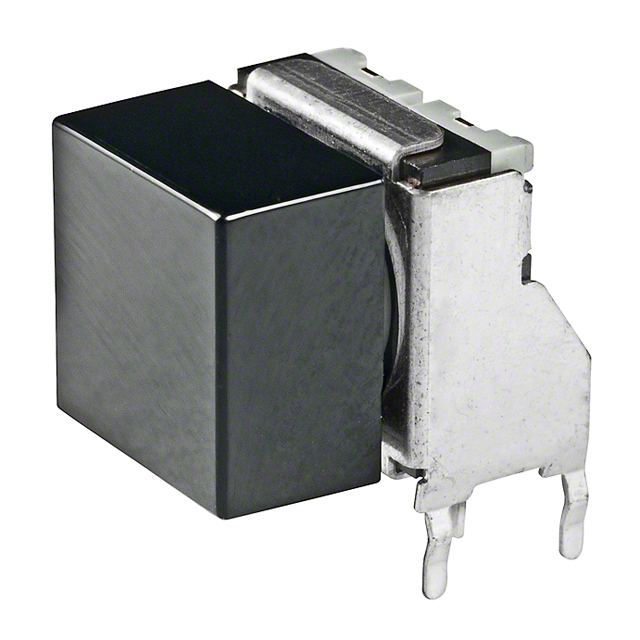

JB15HKH-6A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15HKH-6A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JB15HKH-6A
Manufacturer	NKK Switches
Description	SWITCH TACT SPST-NO 0.125A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 38152 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.617	$1.555	$1.43	$1.244
	$1.182	$1.151	$1.119	$0.871

Product parameter
Data sheet

Product parameter

Part Number	JB15HKH-6A	Manufacturer	NKK Switches
Description	SWITCH TACT SPST-NO 0.125A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38152 pcs	Data sheet	JB Series Low Profile Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.30mm	Switch Function	Off-Mom
Series	JB	Packaging	Bulk
Outline	10.80mm x 10.80mm	Other Names	360-3827 JB15HKH-6A-ND
Operating Temperature	-25°C ~ 70°C	Operating Force	265gf
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle	Contact Rating @ Voltage	0.125A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Side Actuated	Actuator Material	Polyacetal
Actuator Length, Right Angle	7.76mm	Actuator Height off PCB, Vertical	-
