Home > Products > Switches > Tactile Switches > JB15HBPF-JF

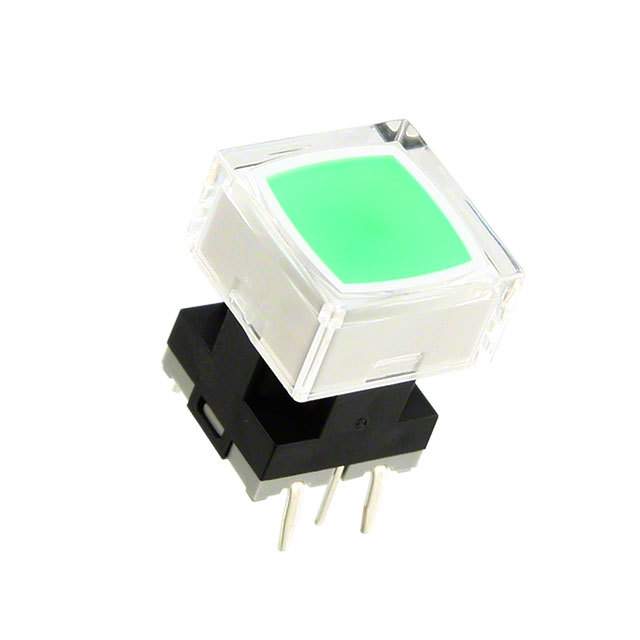

JB15HBPF-JF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15HBPF-JF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JB15HBPF-JF
Manufacturer	NKK Switches
Description	SWITCH TACT SPST-NO 0.125A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 25490 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.788	$1.704	$1.619	$1.576
	$1.449	$1.363	$1.236	$1.172

Product parameter
Data sheet

Product parameter

Part Number	JB15HBPF-JF	Manufacturer	NKK Switches
Description	SWITCH TACT SPST-NO 0.125A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25490 pcs	Data sheet	JB Series Datasheet
Category	Switches	Termination Style	PC Pin
Switch Travel	0.30mm	Switch Function	Off-Mom
Series	JB	Packaging	Bulk
Outline	10.00mm x 10.00mm	Other Names	360-2638 JB15BPF-JF JB15BPF-JF-ND JB15HBPFJF Q2354501B
Operating Temperature	-25°C ~ 70°C	Operating Force	265gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.1 VDC	Illumination Type, Color	LED, Green
Illumination	Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.125A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	14.70mm
