Home > Products > Switches > Rocker Switches > GW12LJPCF

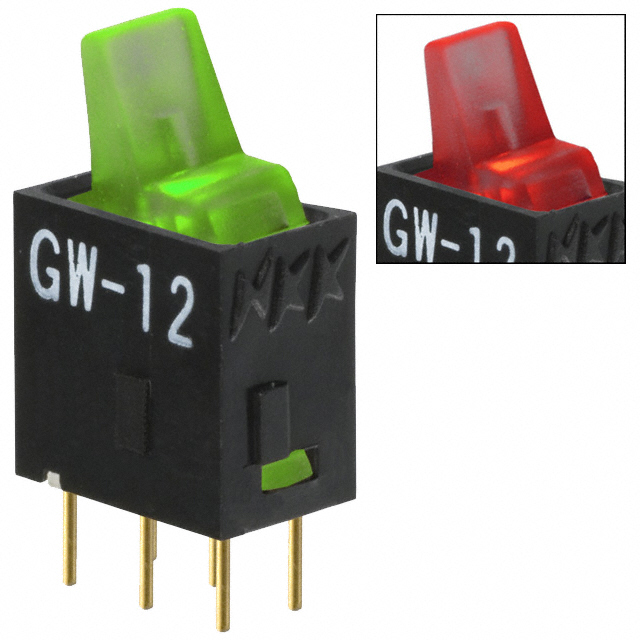

GW12LJPCF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GW12LJPCF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GW12LJPCF
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 23127 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.203	$2.098	$1.993	$1.888
	$1.862	$1.809	$1.73	$1.521

Product parameter
Data sheet

Product parameter

Part Number	GW12LJPCF	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23127 pcs	Data sheet	GW Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	GW
Panel Cutout Dimensions	-	Packaging	Tray
Other Names	360-2112 GW12LJPCF-RO	Operating Temperature	-25°C ~ 55°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2 VDC	Illumination Type, Color	LED, Red/Green
Features	Sealed - Flux Protection	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch SPDT 0.4VA (AC/DC) 28V Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Clear	Circuit	SPDT
Actuator Type	Paddle - Illuminated	Actuator Marking	No Marking
