Home > Products > Switches > Rocker Switches > GW12LHP

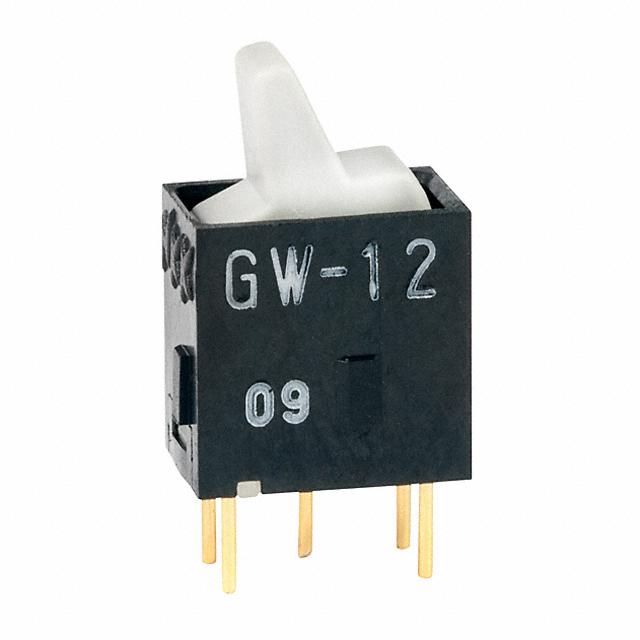

GW12LHP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GW12LHP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GW12LHP
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	300 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 58482 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.993	$0.95	$0.906	$0.863	$0.82
	$0.799	$0.755	$0.669	$0.647

Product parameter
Data sheet

Product parameter

Part Number	GW12LHP	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58482 pcs	Data sheet	GW Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	GW
Panel Cutout Dimensions	-	Packaging	Tray
Other Names	GW12LHP-RO GW12LHP-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Sealed - Flux Protection	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch SPDT 0.4VA (AC/DC) 28V Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Gray	Circuit	SPDT
Actuator Type	Paddle	Actuator Marking	No Marking
