Home > Products > Switches > Pushbutton Switches > GB15JPF

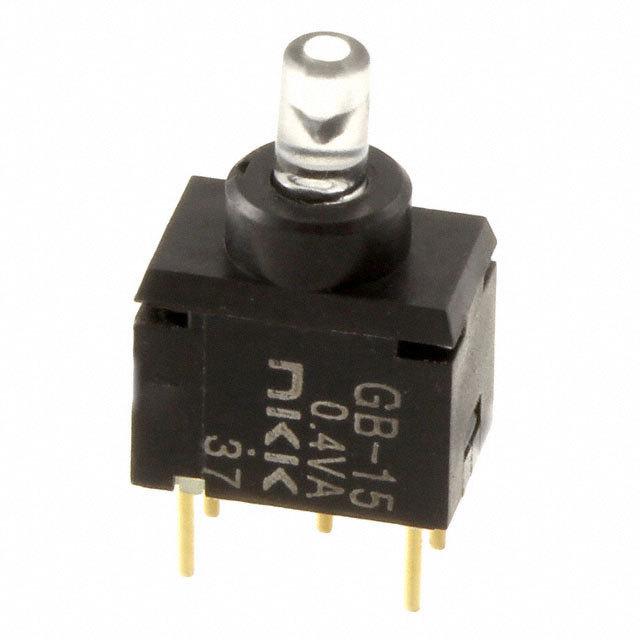

GB15JPF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GB15JPF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GB15JPF
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 23577 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.311	$2.14	$2.084	$2.028
	$1.915	$1.859	$1.746	$1.577

Product parameter
Data sheet

Product parameter

Part Number	GB15JPF	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23577 pcs	Data sheet	GB Series Illuminated Plungers~
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard, Illuminated
Termination Style	PC Pin	Switch Function	On-Mom
Series	GB	Panel Cutout Dimensions	-
Packaging	Tray	Other Names	GB15JPF-RO GB15JPF-RO-ND
Operating Temperature	-25°C ~ 55°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.1 VDC
Illumination Type, Color	LED, Green	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Through Hole
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Clear
Circuit	SPDT	Actuator Type	Round, Plunger
